Learn and play with engines
"Trans4motor S" is the reciprocating aircraft engine simulator.

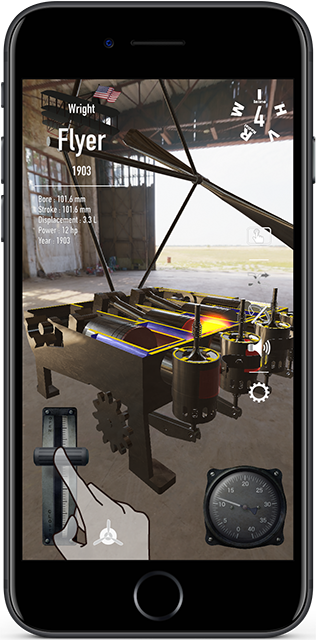

You can operate a wide range of four-stroke engines from the Wright brothers' inline 4 cylinders to the radial, inverted V, W, and H-type on your iPad/iPhone.
Recommended to anyone interested in car and motorcycle engines. This is for those who have a relentless love for engines and want to enhance their knowledge.
Relive the development of the glorious reciprocating aircraft engine.
Seamlessly transforms into different types of engines

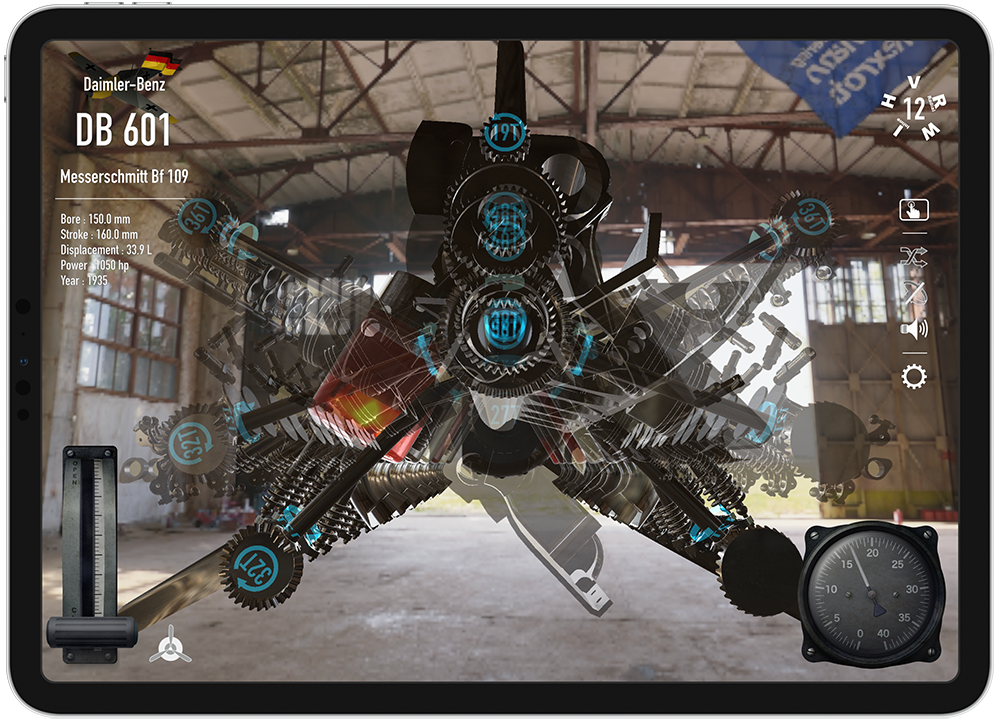

Select from Radial to V-type, or V-type to inverted V-type, etc., and watch the running engines transform over continuous CG animation.
You can enjoy watching pistons, connecting rods, camshafts, valves, and many other parts rotate, separate, and combine to make a variety of engine forms.
Japanese patent application No. 2014-142383
Engine sound and throttle control.
Developed in technical collaboration with Sound Design Lab, the developer of the innovative engine sound application "RealEngineSim", based on the SDL method of engine sound synthesis, this new feature brings a new level of engine sound synthesis for aircraft.
You can experience realistic and powerful engine sounds include, of course, the different numbers of cylinders, the difference between air-cooled and liquid-cooled engines, and the interference sound caused by the rotation of propellers.
In addition, a sophisticated aircraft engine physics model is available in this new version.
It calculates the engine speed based on the engine torque and rotational resistance due to the air resistance depending on the diameter and number of propellers in real time.
Please try the realistic throttle operation.

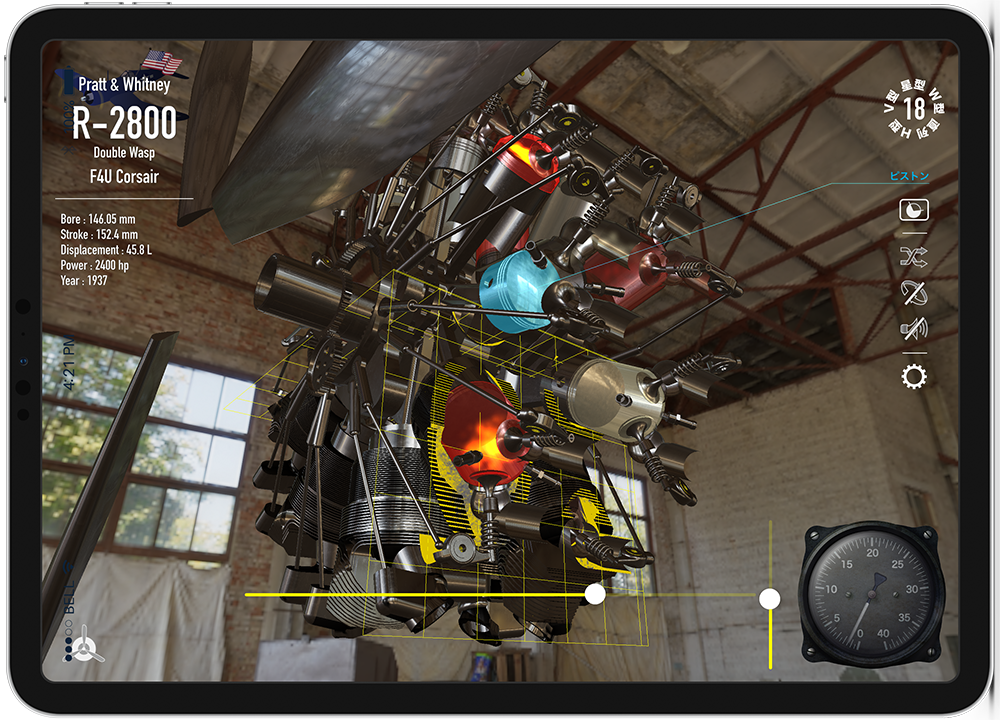

Cutaway mode
You can view the inside of the air-cooling fins and crankcase of the running engine by cutting them horizontally and vertically in real-time.

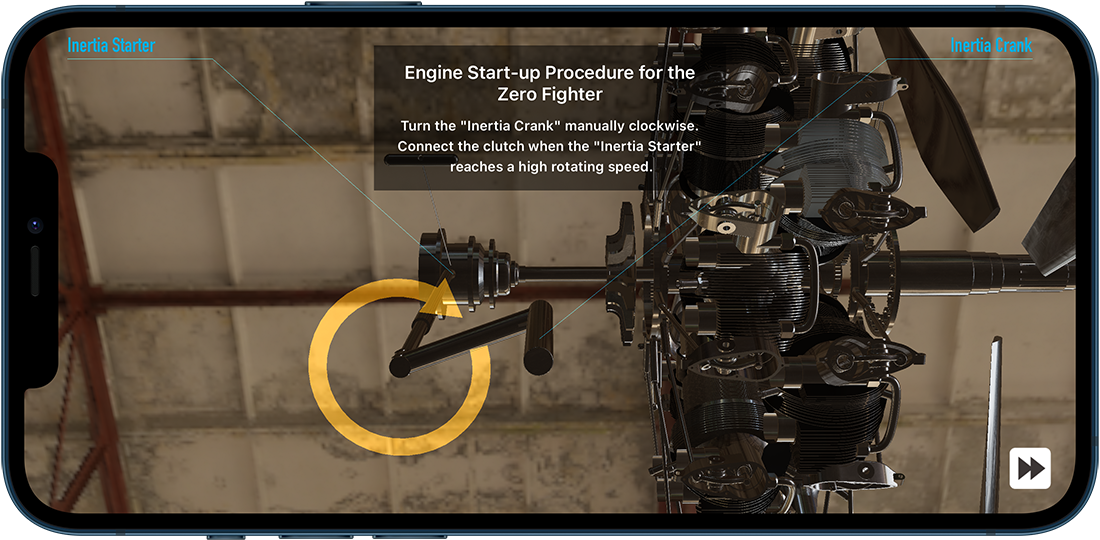

Engine start-up mode
Turn the starter handle manually, increase the speed of the inertia starter and contact the clutch! In this mode, you can virtually experience the engine start-up procedure.

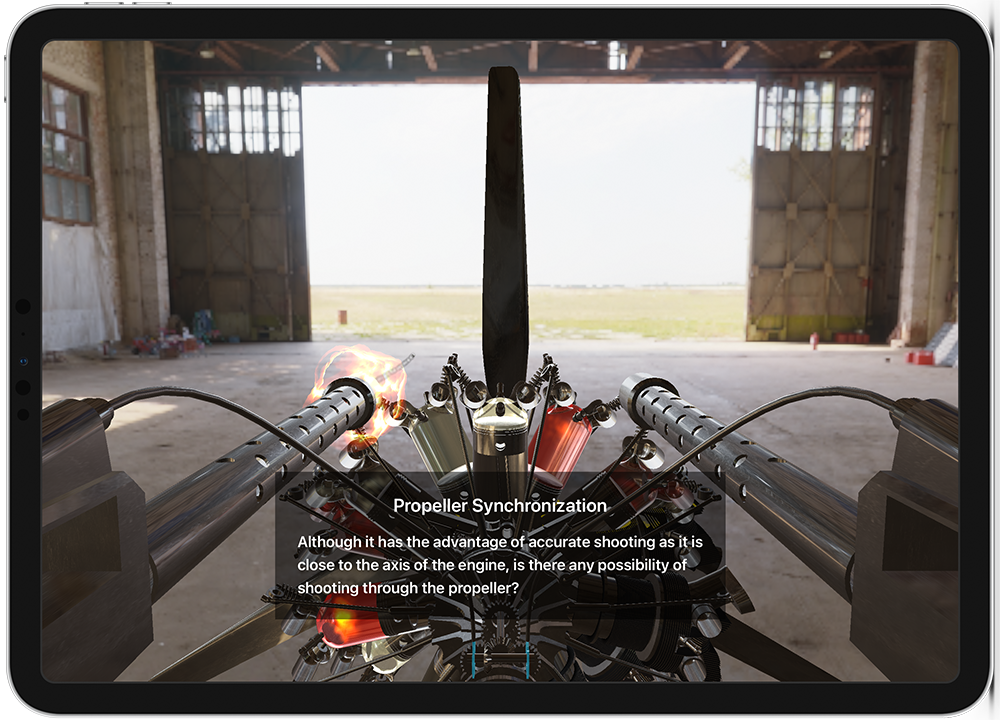

Machine gun mode
In this mode, you can test-fire the "Type 97 aircraft machine gun" of the "Sakae" engine installed in the Zero fighter,
the "MG 151/20" of the "DB 601" engine installed in the "Messerschmitt Bf 109".
You can also learn how the propeller synchronize system works in super slow motion.
Main View
·Show/Hide parts button

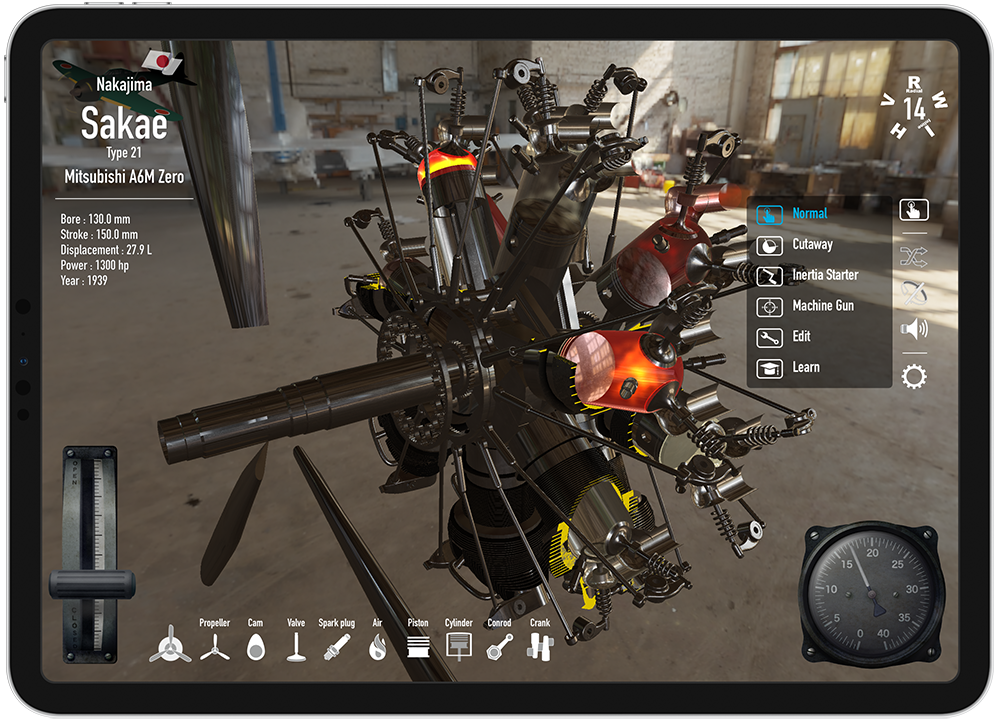

·Mode button
·Auto Shuffle button
·Auto Rotate button
·Engine Sound On/Off button
·Settings button

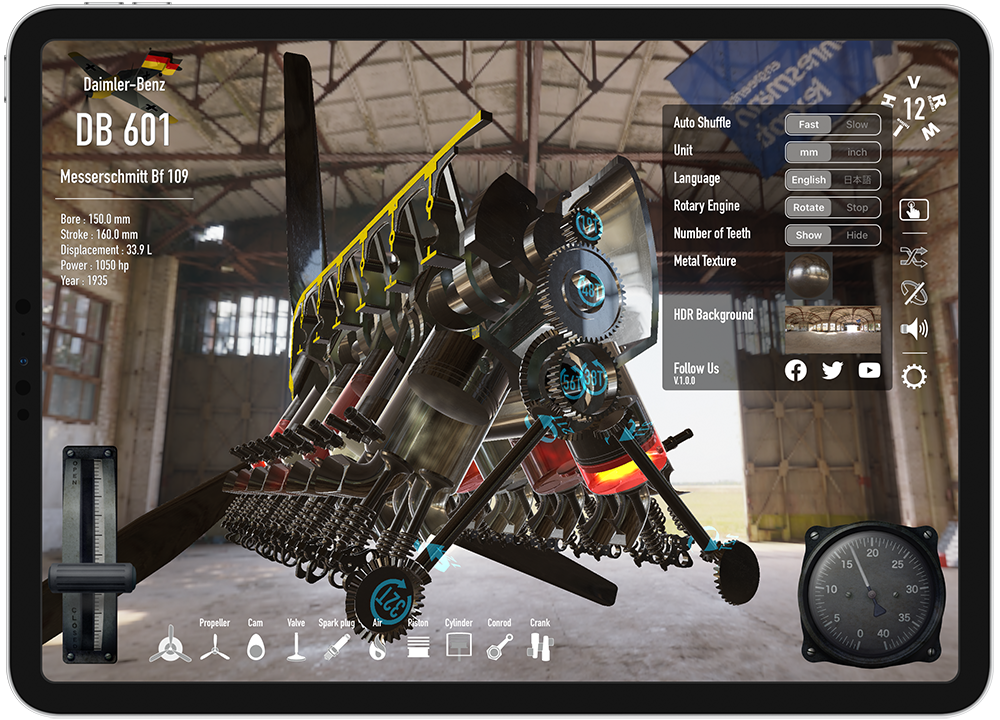

Settings View
·Auto Shuffle: Fast/Slow
·Unit: mm/inch
·Language: English/Japanese

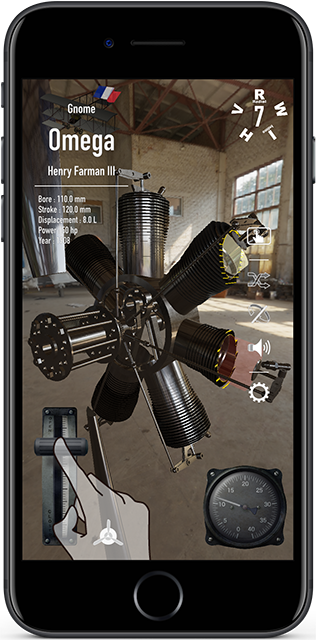

·Rotary Engine: Rotate/Stop
·Number of Teeth: Show/Hide
·Metal Texture
·HDR Background
Learn / Interactive Movie
·Four-stroke engines
·Cam and Gear
·Gun

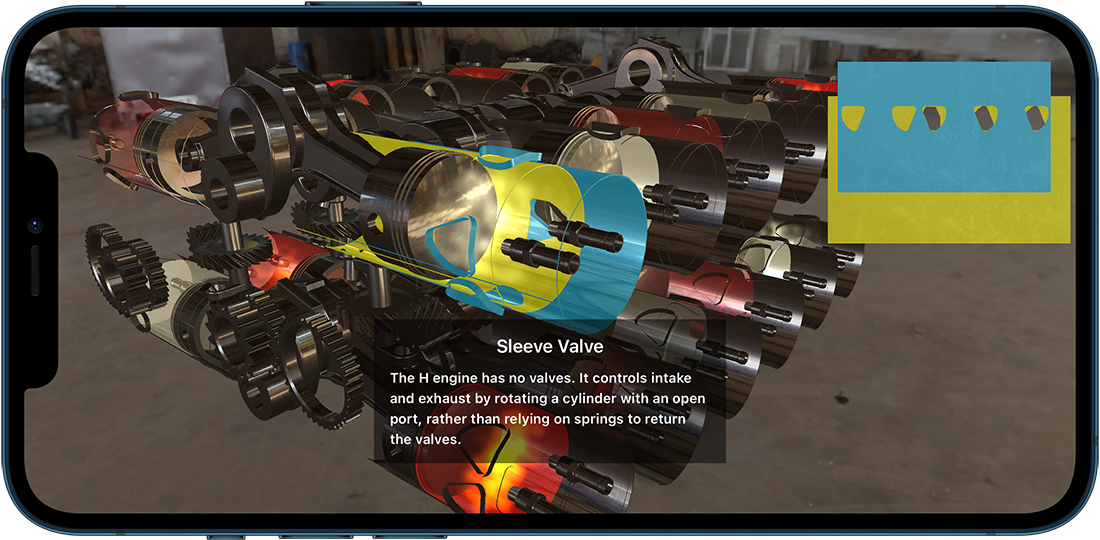

·Sleeve Valve
Recorded 4 controllable presentation videos.
Additional functions planned in the future.
·R-4360 Wasp Major will be available soon.
·Adding function to import 360° background images (HDRI files).
·Android version is under consideration. We will let you know when we decide to develop it.
| Supported OS | iOS 14 or later, supports iOS 15/16 |
|---|---|
| Supported Devices | iPhone 6s/7/8/X/XS/11/12/13/14 Pro Max iPad Air2, iPad 5th, iPad mini 4 or later, supports iPad Pro 11/12.7 |
The CG animated engine rotates at one tenth of the actual speed to enable users to learn the structure and to enjoy the visual.
This application is based on a representation of the engine specifications available to the public for learning purposes, and is not a precise rendition of the dimensions and design of the actual machine.
The company and product names used within the application are generally registered trademarks or trademarks of the respective companies.
